Description

  • High quality Anthracite powder coated finish - a darker shade of matt grey
  • Heat output: 8658 BTU's (2537Watts)
  • Compatible for use on all UK heating systems tank fed, combi systems

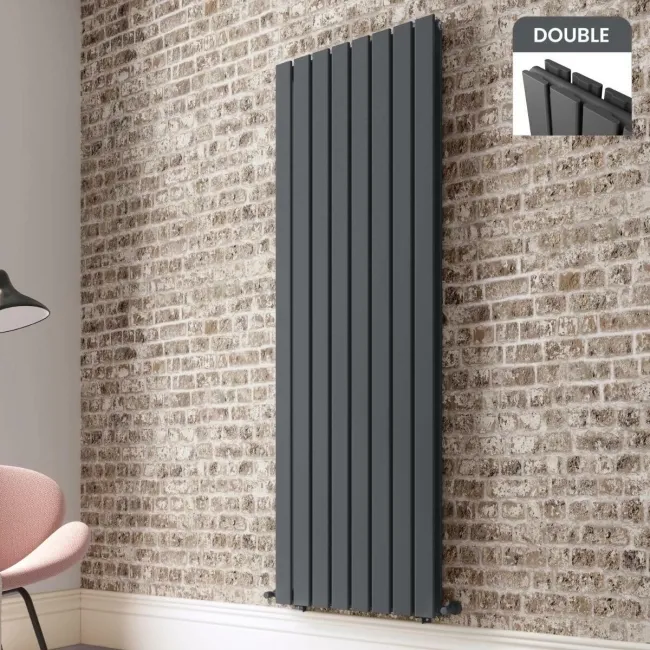

  • Double panel for extra heat output
  • Tested in accordance to British Standard EN 442
  • Not suitable for use with heated elements
  • Excludes radiator valves
  • For perfect valve fit, use our matching valves

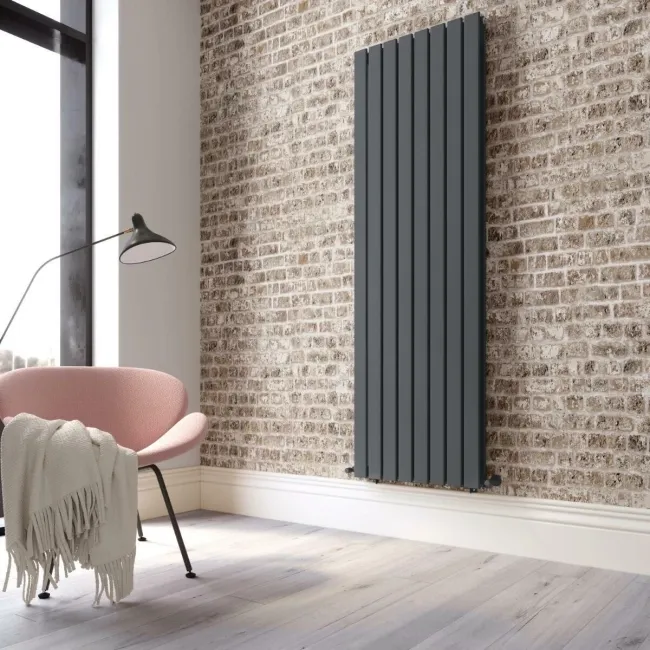

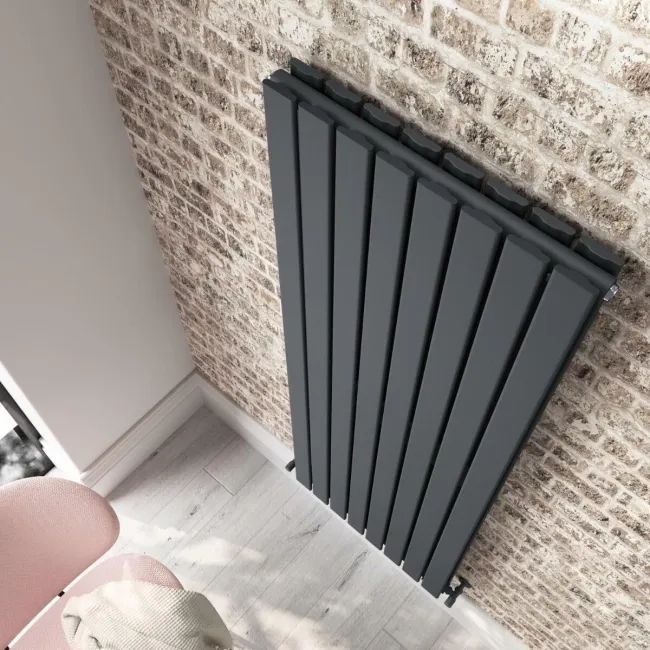

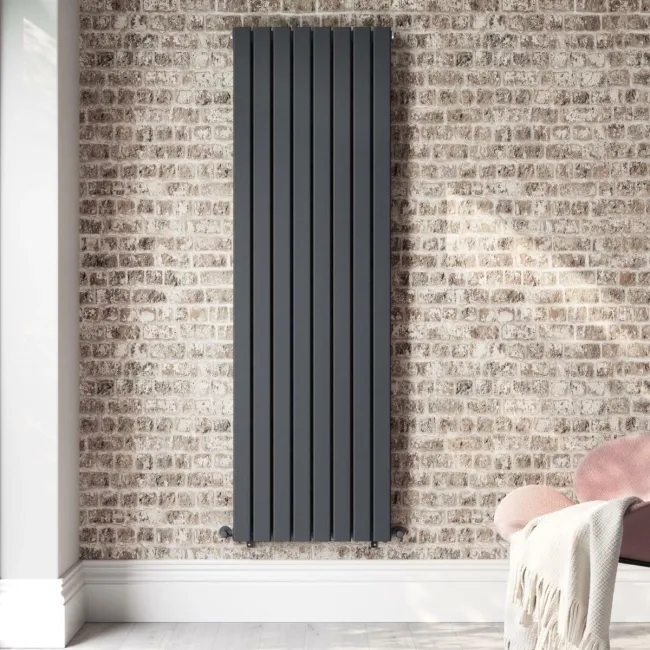

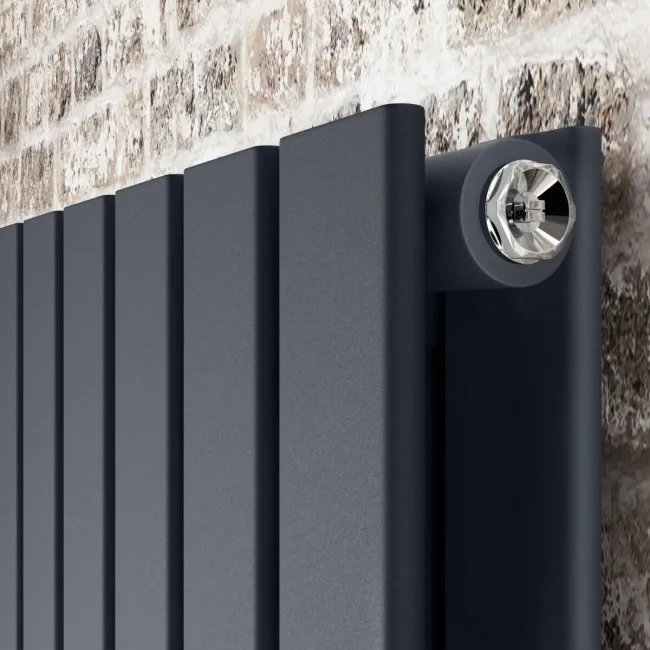

    • Faro Anthracite Double Flat Panel Vertical Radiator 1800x560mm

    293 reviews 293 reviews

    Height (mm)

    Width (mm)

    In stock icon In Stock
    Save: £84.99
    QTY
    Dimensions
    Height
    1800mm
    Width
    560mm
    Depth
    67mm
    Weight
    47.91kg
    Technical Features
    Installation type
    Central Heating
    Material
    Low Carbon Steel
    Certification
    Comply With BS EN 442/ ISO9001:2008 /100% Leak Tested
    Fitting
    Wall Hung
    Type
    Radiator
    Shape
    Flat Panel
    Volumn in Litres
    15.41
    BTU at Delta T30
    3202
    BTU at Delta T50
    6177
    BTU at Delta T65
    8658
    Watts at Delta T30
    938
    Watts at Delta T50
    1810
    Watts at Delta T65
    2537
    Wall to Centre Tapping
    51
    Pipe Centres (mm) Installation dependent
    630
    Projection from Wall
    84mm
    Tube Diameter
    60x12mm
    Inlet Connections
    1/2"
    Orientation
    Vertical
    Blanking and Bleed Plug Included
    Yes
    Valves Included
    No
    Tube shape
    Flat Panel
    Style
    Colour
    Anthracite
    Shape
    Flat Panel
    Finish
    Matt
    Style
    Modern
    Heating Type
    Central Heating
    Range
    Faro
    Type
    Radiator
    Guarantee
    Length
    5 Years
    Instructions
    Installation Manual of Flat tube Radiator

    Description

  • High quality Anthracite powder coated finish - a darker shade of matt grey
  • Heat output: 8658 BTU's (2537Watts)
  • Compatible for use on all UK heating systems tank fed, combi systems
  • Double panel for extra heat output
  • Tested in accordance to British Standard EN 442
  • Not suitable for use with heated elements
  • Excludes radiator valves
  • For perfect valve fit, use our matching valves

    • Finish The Look

    1. 34010

      Anthracite Pipe Connectors For Heated Towel Rails & Radiators (Pair) 150mm

      £14.99

      140
    2. Anthracite Pipe Connectors For Heated Towel Rails & Radiators (Pair) 300mm

      Anthracite Pipe Connectors For Heated Towel Rails & Radiators (Pair) 300mm

      £19.99

      95
    Item 1 of 2

    Essential Extras

    1. 34015

      Bleed Keys - Radiator

      £1.99

      55
    2. 34027

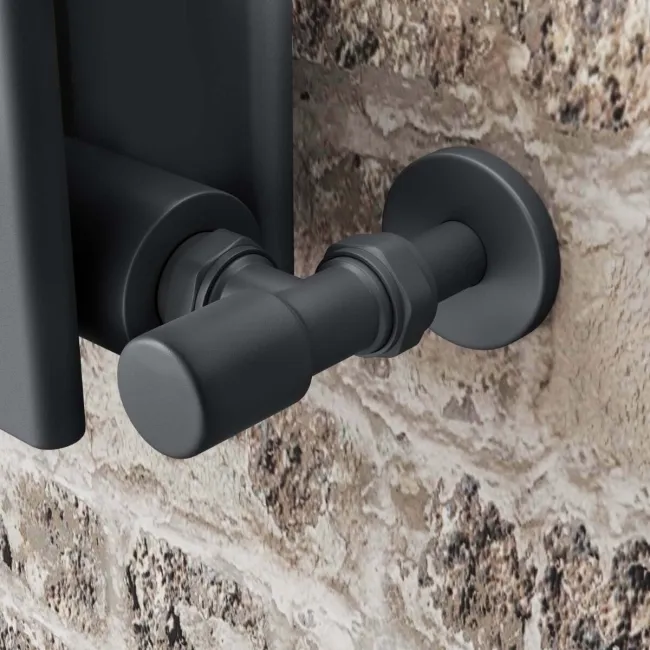

      Straight Anthracite Manual Radiator Valves (Pair) Standard 15mm

      £24.99

      376
    Item 1 of 7

    Shop the Range

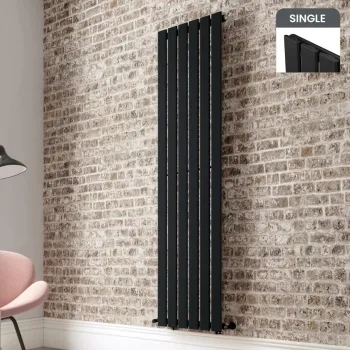

    1. Faro Anthracite Single Flat Panel Vertical Radiator 1600x420mm
      SALE

      Faro Anthracite Single Flat Panel Vertical Radiator 1600x420mm

      £127.00

      Was £ 169.99 | Save 25%

      190

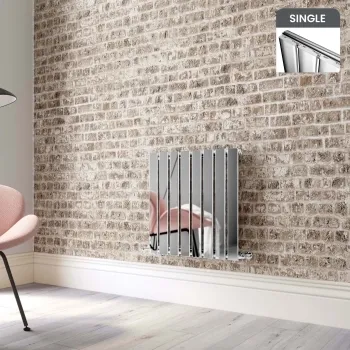

    2. Faro Chrome Single Flat Panel Horizontal Radiator 600x560mm
      SALE

      Faro Chrome Single Flat Panel Horizontal Radiator 600x560mm

      £139.99

      Was £ 174.99 | Save 20%

      85
    Item 1 of 5
    Read More Reviews:

    Q & A

    Simon20/09/23
    Hi, Could you please tell me which valves do i need for this radiator?Our Advice

    You need Antracite Angled valves for this radiator.

    Warren14/09/23
    What is the radiator made from ? Our Advice

    This item is made up of low-carbon steel with powder coated finish.

    Dave17/08/23
    Is this radiator fed from the sides or from the bottomOur Advice

    Yes, you will find one side the inlet and the other side outlet, most right side is inlet.

    Jeremy04/08/23
    Which side is flow /inlet or does it not matter, thanks Our Advice

    Normally, you will get a yellow stick on the right side inlet (Air vent) and on the left side outlet (bleed).

    Mrs Garner29/09/22
    Do you supply a rail to fix on this radiator for a kitchen towel to dry…in the same colour etc. I purchased this radiator from you in July this year.Our Advice

    We don't, I'm afraid.

    Michael Stone30/01/22
    What are the fixing centres both horizontal and vertical please. ThanksOur Advice

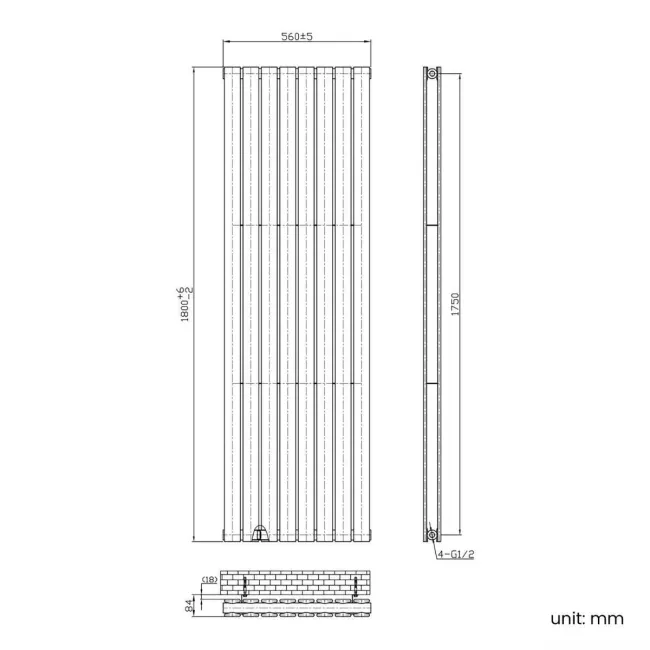

    I have added the technical diagram for your review. https://www.bathroommountain.co.uk/img/1900/1900/resize/catalog/product/3/1/31063-SIZE-Anthracite-Double-Flat-Panel-Vertical-Radiator-1800x560mm_1.jpg

    Michael Stone30/01/22
    Is there a diverter fitted . Does it matter which is flow and return. Thanks Our Advice

    It will have a diverter on the listed inlet on the left and this must be the inlet.
