Description

  • High quality Anthracite powder coated finish - a darker shade of matt grey
  • Heat output: 9277 BTU's (2719Watts)
  • Compatible for use on all UK heating systems tank fed, combi systems
  • Double panel for extra heat output
  • Tested in accordance to British Standard EN 442
  • Not suitable for use with heated elements
  • Excludes radiator valves
  • For perfect valve fit, use our matching valves

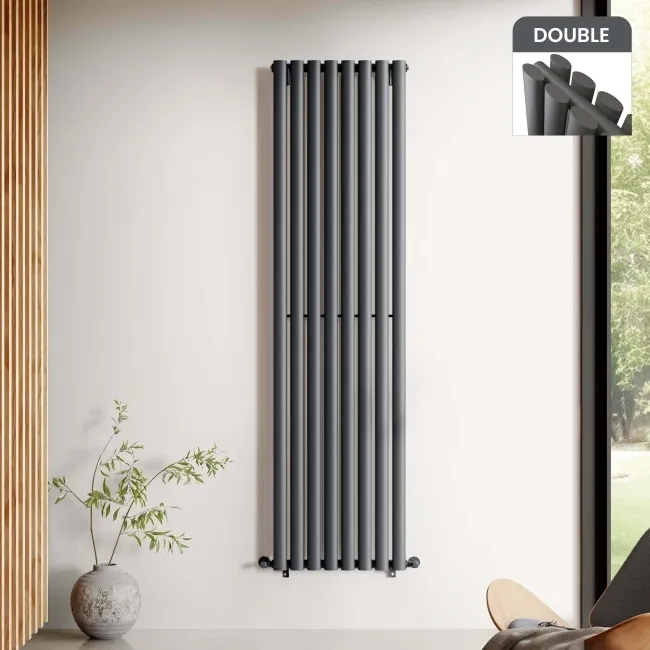

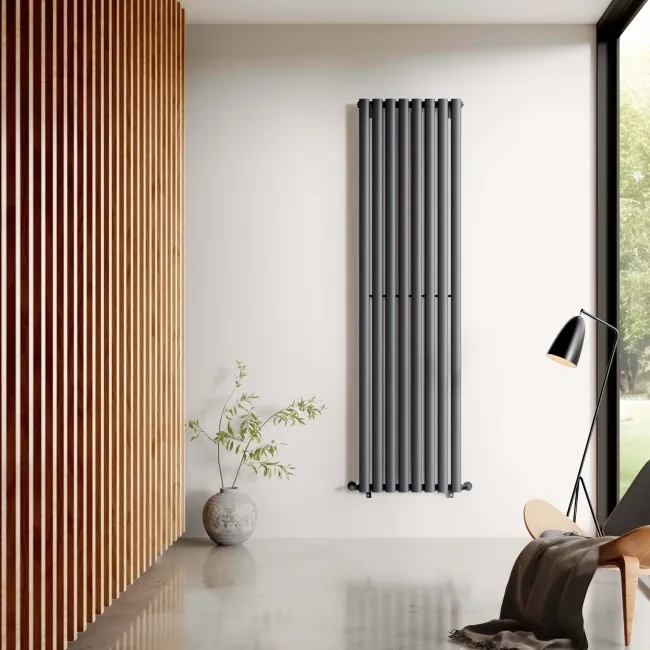

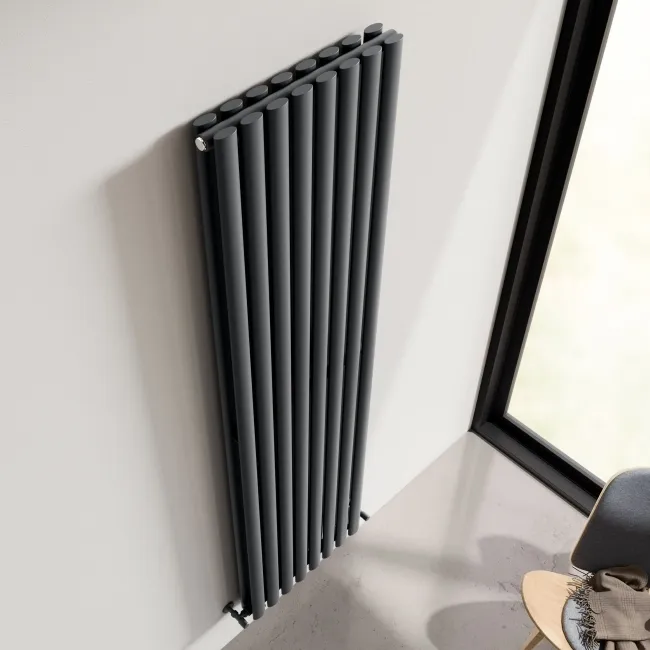

    • Marbella Anthracite Double Oval Panel Radiator 1800x480mm

    91 reviews 91 reviews

    Height (mm)

    Width (mm)

    Out of stock iconOut of Stock(Stock due in approx 1 July 2025 )
    Save: £50.00

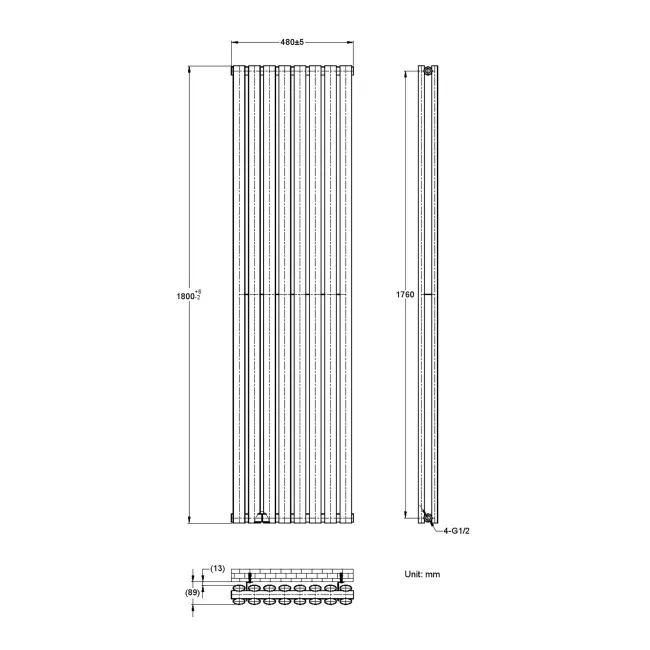

    Dimensions
    Height
    1800mm
    Width
    480mm
    Depth
    75mm
    Weight
    30.35kg
    Technical Features
    Installation type
    Central Heating
    Material
    Low Carbon Steel
    Certification
    Comply With BS EN 442/ ISO9001:2008 /100% Leak Tested
    Fitting
    Wall Hung
    Type
    Radiator
    Shape
    Oval
    Volumn in Litres
    24.08
    BTU at Delta T30
    3528
    BTU at Delta T50
    6683
    BTU at Delta T65
    9277
    Watts at Delta T30
    1034
    Watts at Delta T50
    1959
    Watts at Delta T65
    2719
    Wall to Centre Tapping
    51
    Pipe Centres (mm) Installation dependent
    550
    Projection from Wall
    13mm
    Maximum Water Pressure
    10bar
    Tube Diameter
    46x23mm
    Inlet Connections
    1/2"
    Orientation
    Vertical
    Blanking and Bleed Plug Included
    Yes
    Valves Included
    No
    Tube shape
    Oval
    Style
    Colour
    Anthracite
    Shape
    Oval
    Finish
    Matt
    Style
    Modern
    Heating Type
    Central Heating
    Range
    Marbella
    Type
    Radiator
    Guarantee
    Length
    5 Years
    Instructions
    Installation Manual of Flat tube Radiator

    Description

  • High quality Anthracite powder coated finish - a darker shade of matt grey
  • Heat output: 9277 BTU's (2719Watts)
  • Compatible for use on all UK heating systems tank fed, combi systems
  • Double panel for extra heat output
  • Tested in accordance to British Standard EN 442
  • Not suitable for use with heated elements
  • Excludes radiator valves
  • For perfect valve fit, use our matching valves
